Toilet Lift 600 lb Capacity: What Non-Electric Bariatric Support Looks Like

A weight-capacity question like this usually comes up for one reason: the person who needs the equipment weighs more than a standard-issue bathroom safety product is built for. SedMed's Specifications sheet and Instructions for Use (IFU) both list a 75–600 lb overall capacity, and the five-setting resistance dial is illustrated with numbered points at 75, 125, 175, 225, and 275 lbs, spaced in 50 lb increments, letting a caregiver or clinician calibrate assist force to the individual.

So the SedMed device itself carries the full 75–600 lb rating; for a heavier user, the more important question is often whether the toilet beneath it is rated to match.

That's a meaningfully different question than "does a standard toilet support this weight." Toilet-bowl weight ratings aren't governed by a consistent public standard we could cite, so this article doesn't state one. What can be said is that a hydraulic gas-spring mechanism, unlike a coil spring or an electric motor, doesn't lose lifting force as it wears — part of why non-electric designs are commonly used in higher-capacity mobility equipment. For the full breakdown of how the five-setting mechanism works across SedMed's product line, see the complete non-electric toilet lift buyer's guide.

Federal health survey data puts US adult obesity prevalence at 40.3%, with severe obesity at 9.4% — and the highest rate, 46.4%, among adults age 40 to 59 [1]. That's a large and growing share of the population for whom a standard-capacity grab bar, riser, or lift may simply not be rated to their weight.

The safety stakes extend beyond the user. A review of bariatric patient-handling research found that although patients with obesity make up less than 10% of a typical care population, they account for roughly 30% of caregiver injuries sustained during manual transfers [2]. Toilet transfers — repeated multiple times a day, often in a cramped bathroom with limited room to maneuver — are among the most physically demanding of these.

Higher-capacity equipment addresses part of that gap, but not all of it. A device rated for a wider weight range still needs to be matched to an individual's specific weight, balance, and transfer ability — which is why a fitting conversation with a clinician matters as much as the spec sheet, particularly at the upper end of any capacity range.

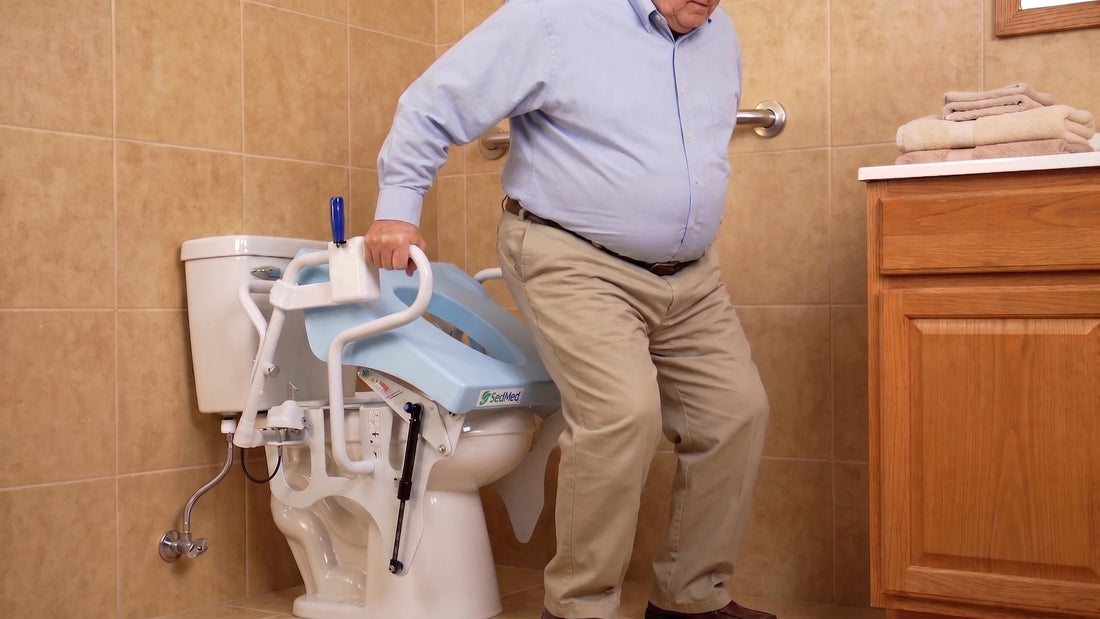

The mechanism is a sealed hydraulic gas spring, not an electric motor and not a simple coil spring. As a user shifts their weight forward to stand, the gas spring resists the seat's descent and pushes back upward, helping reduce the effort required to complete the sit-to-stand transfer by up to approximately 80% of the user's body weight.

Because the lift is entirely mechanical, there's no battery to charge, no motor to burn out, and nothing electronic to fail during a power outage — a real consideration for higher-weight transfers, where losing assist mid-transfer is a genuine fall risk. Five adjustable resistance settings let a caregiver or clinician select the level of assist appropriate to the user's weight and strength, rather than relying on one fixed setting for every body type.

Installation uses a rear mounting bracket with four adjustable slots that attaches through the toilet's existing two seat-bolt holes — no new floor or wall anchoring, no electrician, no plumbing modification. The unit itself weighs approximately 50 lbs and has a 25-inch handlebar span for a stable grip during the transfer.

OSHA reports that nursing-assistant musculoskeletal-disorder rates run more than five times the all-industry average, and recommends Safe Patient Handling — assistive lifting devices, hazard assessment, and staff training — as the core intervention [3]. The CDC's National Institute for Occupational Safety and Health (NIOSH) goes further, identifying patient handling specifically as the single greatest musculoskeletal-injury risk factor healthcare workers face [4].

Bariatric transfers concentrate that risk. A review of bariatric-handling practices found that 59% of care organizations had no formal bariatric manual-handling policy, and while 77% owned specialized equipment, only 32% had staff trained to use it [7] — a real gap between having equipment on hand and using it safely. Family caregivers carry a parallel burden: in one study, 94% of informal caregivers reported musculoskeletal discomfort within the prior month, with transfers ranking among the most physically demanding tasks they perform [6].

The intervention evidence runs the other direction, too. A meta-analysis of 27 studies found that implementing a formal SPHM program reduced staff injury risk by 56% [5]. For a facility evaluating bariatric-capacity toilet equipment, the relevant question isn't only whether it fits the resident — it's whether the equipment reduces the number of manual, unassisted lifts staff perform per shift, and whether staff are actually trained on the specific setting and technique for each resident's assessed needs.

SedMed's published compatibility specifications call for at least 14.75 inches of clearance on the left side of the toilet and 12.75 inches on the right, with a maximum toilet width of 17 inches; the device is compatible with standard commercial toilets, wall-mounted toilets, ADA-compliant bathrooms, and both round and elongated bowls. Installation uses the rear mounting bracket described above and does not require new floor or wall anchoring.

Facility and accessibility standards matter alongside the device's own footprint. Federal accessibility guidelines require grab bars near a toilet to withstand at least 250 lbs of force and specify an accessible toilet seat height of 17 to 19 inches [8]. Separately, a nursing-home study of 263 residents found that a safe seat height is roughly 80–120% of a person's lower-leg length, and that a mismatched toilet height independently raises fall risk [9] — a relevant check for bariatric fitting specifically, since seat height affects transfer mechanics as much as weight capacity does.

Before installing bariatric-capacity equipment in a shared or facility bathroom, confirm compatibility against both SedMed's device specifications and the facility's existing accessibility standards — the two aren't the same checklist. For a deeper walkthrough of fit questions, see toilet lift compatibility: does it work with your existing toilet, or the compatibility guide page directly.

A higher weight rating solves one part of a bariatric bathroom-safety decision, not all of it. Before buying, confirm the user's weight directly against SedMed's current capacity documentation rather than relying on a single marketing figure — especially given the internal documentation questions noted earlier in this article. Ask which resistance setting a clinician recommends for that specific weight, and whether an occupational or physical therapist should be involved in the fitting decision.

Measure the bathroom against SedMed's compatibility specifications — 14.75 inches of left clearance, 12.75 inches on the right, 17-inch maximum toilet width — before ordering. For facility buyers, add a structural check confirming the toilet, mounting bolts, and floor flange can support the combined weight of the user and the device, and build staff training into the rollout from day one, not as an afterthought once the equipment arrives.
